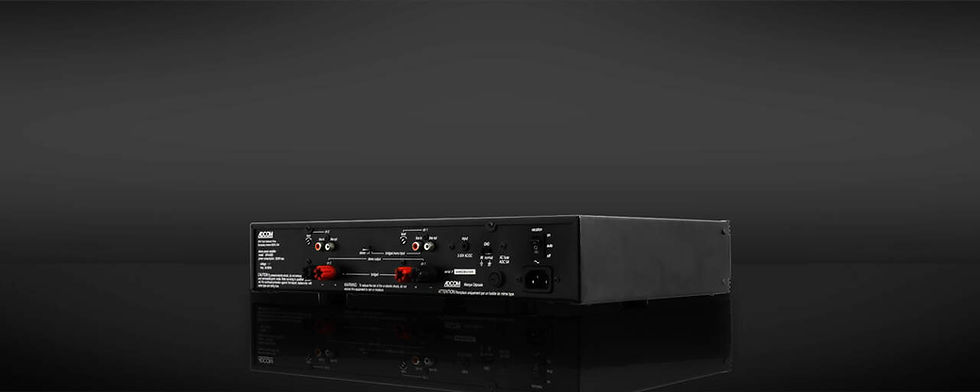

Adcom GFA-6002

Bridgeable Power Amplifier

ADCOM introduces the new GFA-6002 power amplifier. Available in 2-channel configurations, this new amplifiers feature more robust and efficient power and heavy-duty reliability. GFA-6002 delivers lower THD (total harmonic distortion) for more clean, pure sound and lower noise for a supremely quiet background.

Performance

The GFA-6002 is a stunning amplifier in every way – performance, styling and reliability combined to elevate your music listening to a new experience. Capable of controlling a wide variety of speakers, the GFA-6002 will transport you into the musical performance unlike any other comparable amplifier.

Precision

The GFA-600x series is designed with toroidal transformers, dual pairs of output transistors, FR4 fiberglass circuit boards and ultra-efficient heat sinks. The GFA-6002 best made toroidal transformers offer exceptional efficiency, minimal excess noise and little excess leakage inductance.



• Output Power

  70 watts into 8 ohms
  100 watts into 4 ohms
  175 watts into 8 ohms, bridged

  Frequency Resp.

  @ 1watt, 8-ohms:
  +0. -0.25dB, 10Hz to 20kHz

  Power Bandwidth (-3dB):

  5Hz to 130kHz

  Input Impedance

  17,000 ohms.

  Input Sensitivity

  Variable.

  Damping Factor

  >400, 20Hz to 20kHz.

  Max Dimensions

  5.25” x 17” x 15.5”
  133.4mm x 432mm x 393.7mm

  Weight

  18lbs.(8.2kg)
  Shipping Weight: 21lbs.(9.5kg)

  Power

  120VAC & 230VAC / 50-60Hz
