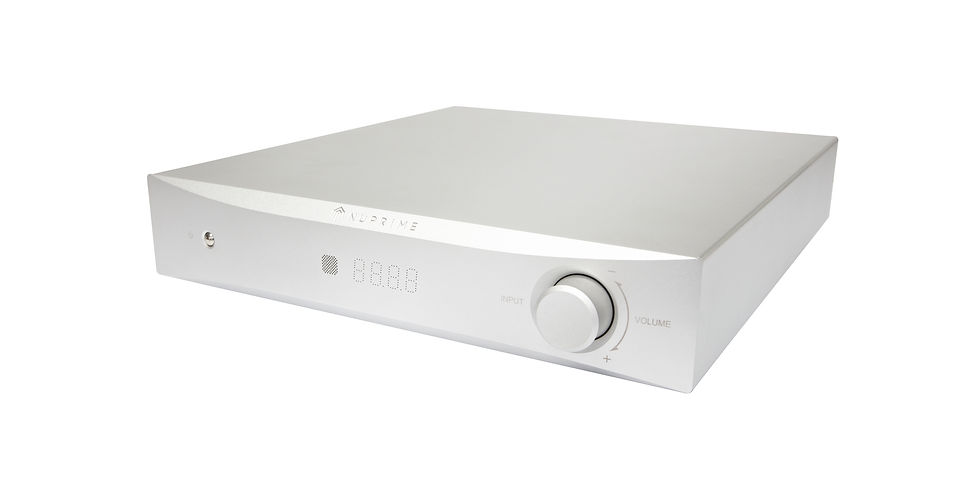

NuPrime DAC-8

NuPrime DAC-8

$799.00 Regular Price
$679.00Sale Price
With eight digital (including 2 x IIS/DSD) inputs, RCA stereo output, and decoding capability of PCM 384K, DSD256, the NuPrime DAC-8 is an affordable high-end DAC designed for audiophiles.
Color
Quantity

  • Description

    Main Features:

    • NuPrime SRC IC chip (co-developed with IC vendor) provides DSP processing where Input signals are up-sampled to megahertz before down-converted to the targeted sampling rate with ultra-low jitter and distortion.
    • Extension port for Bluetooth receiver and WiFi audio streamer (optional).
    • Full microprocessor control with memory retention.
    • Supports DSD native playback by ASIO2.1 and DoP method.
    • Asynchronous transfer mode.
    • Volume adjustment in 99 precise 0.5dB increments
    • Individually adjustable volume on each input for precise level matching of sources
    • Exclusive driver software for Windows
    • Standard driver software for Mac
    • Available in black or silver anodized aluminum finish

    Using Bluetooth and WiFi Audio Receivers and Dongles

    NuPrime defined an USB Type-A port to carry S/PDIF data and 5V power for connecting to external wireless audio receiver using just one standard USB cable. The NuPrime Omnia WR-1, WR-2, BTR-HD, Stream Mini, and Stream Mini DAC wireless receivers have a micro USB port that is compatible this specification. This allow a standard off-the-shelf USB-A to micro USB cable to be used for power for the receiver as well as wireless audio data transfer in S/PDIF format.

  • Specs

    Inputs:

    • USB : Type B 2.0 Hi-Speed, Windows OS : data stream up to 384KHz/24Bit and Native DSD 256.
      USB : Type B 2.0 Hi-Speed, Mac / Lunix OS : data stream up to 384KHz/24Bit and DOP DSD 128.
    • IIS/DSD : Supports PCM 44.1KHz ~ 384KHz/32Bit and DSD 64 ~ DSD 256 data streams.
    • OPTICAL : Supports PCM 44.1KHz ~ 192KHz/24Bit and DOP 64.
    • COAXIAL : Supports PCM 44.1KHz ~ 384KHz/24Bit and DOP 64 and 128.
    • EXTENSION : Supports PCM 44.1KHz ~ 192KHz/24Bit.

    Outputs:

    • RCA unbalanced outputs : 2 Vrms
    • Frequency response: 20 Hz – 20 KHz / ±0.3 dB.
    • SNR: > 110 dB.
    • THD+N: < 0.005%.
    • Worldwide AC voltage: (90VAC~130VAC // 210VAC~ 250VAC) With Voltage Select Switch
    • AC Fuse: Slow-blow, 1A, 250VA
    • Product Dimension:  55 x 235 x 281 mm (H x W x D)
    • Package Dimension: 80 x 390 x 360 mm (H x W x D)
    • Product Weight: 2kg
    • Package Weight: 4.5kg

    Warranty: 1 year.
