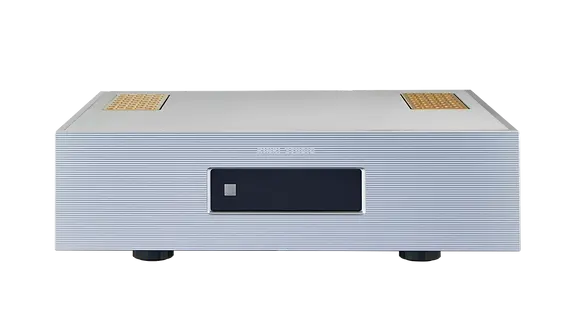

EX-M7

Parameters

• Frequency Response: 0-2.5MHz (±3dB)

• THDN: ＜0.07% (-80db)

• S/N Ratio: >103db(0.01Hz- 1 MHz), >130db (A-Weighted)

• Output Power: 250 W RMS(2-8 Ohms)

• Max Instantaneous Power: 400w RMS (8 Ohms)

• Max Output Voltage: 70VAC, 18A

• Slew Rate: 200 V /us (Rise Time < 100ns)

• AC Power: 110/240VAC, 50/60Hz (Factory configure).

• Power Consumption: 30W Idle, 700W Max Output



Input / Output

• Input Sensitivity: 1.45Vrms

• Input Impedance: 51kΩ (Acceptable Range 10k-52kΩ)

• Input Connector: RCA x 1, XLR x 1

• Output: Speaker Binding Post 4mm L/R Channel



Dimension & Weight

• Dimension: 430D x 375W x 110H

• Weight: 25KG

Warranty

• China & Hong Kong Domestic Market: 1 Year Warranty

• Worldwide (Outside of CN & HK): 3 Years Warranty



Who handles the Warranty & Services?

• The distributor handles the warranty and services. They may set the warranty terms for their countries.
• You should purchase from our authorized distributor in your region / country.
• Product(s) purchased abroad are considered unauthorized (also known as 'grey market'). Neither us nor the distributor in your region will be supporting the warranty and/or services of the unauthorized product(s).



No Distributor In Your Region?

• You may buy directly from us. If in doubt, please contact us at sales@kinki-studio.com



Power Cord Excluded

• In order to save on packaging materials to reduce environmental impact, cheapo power cord is excluded.
