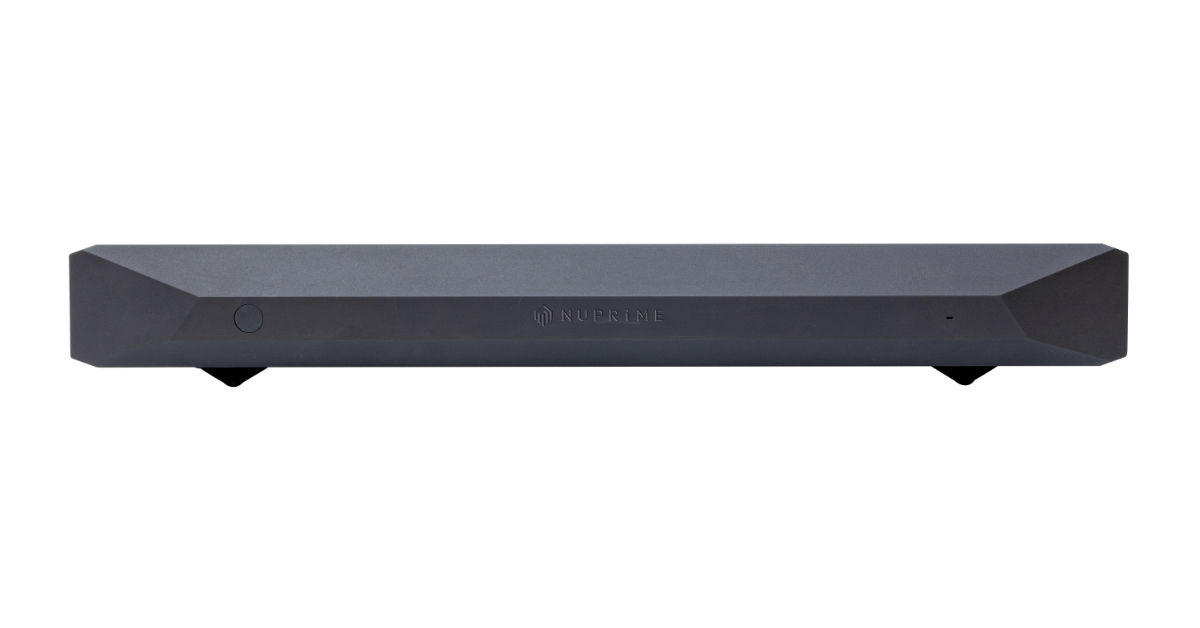

NuPrime SW Ultimate

The SW Ultimate is a high-end, Layer 3,12-port gigabit network switch with 4 shared fiber optic SFP ports, designed specifically for music enthusiasts aiming to construct a dedicated “HiFi Ecosystem” and achieve the utmost in audio fidelity. It enhances network performance by minimizing signal noise through NuPrime’s ultra low noise power supply and a customized TCXO clock. This setup ensures precise network signals for stable and reliable music data transmission, significantly improving the listening experience.

Specifications

Ethernet Copper Port

• Gigabit Ethernet ports (1GbE RJ45) x 12. Ports 9 to 12 are shared with the SFP ports, meaning only one type can be active at a time.
• Port 8 has higher priority than other ports and can be used when connecting one SW Ultimate to another.  The router can be connected to any one of the ports.

Ethernet SPF Fiber Optic Port

• 4 x 1000BASE-X SFP interfaces
• Port 9 has higher priority than other ports and can be used when connecting one SW Ultimate to another.  The router can be connected to any one of the ports.

Interfaces

• Clock input switch x 1 (external/internal)
• BNC interface for 10MHz external Word Clock
• TCXO clock module

Grounding Port

• Connect to a ground box to enhance signal purity and precision without interference

LED Indicators

• Power LED (Green) x 1 at the front panel
• Port Status LED x 8 at the rear panel
  • Green: 1000Mbps
  • Amber: 100Mbps
  • Lights on when linked; flashes when active

Reset Button

• < 5 sec: System reboot
• > 5 sec: Factory default

Color

• Black or Silver

Power Input

• IEC (AC) 100-240V, 50/60Hz
• (DC) 12V/1A max

Power Consumption

• 10 Watt at max

Product Details

• Product Dimension:  61.5 x 430 x 369 mm (H x W x D)
• Package Dimension: 160 x 450 x 560 mm (H x W x D)
• Product Weight: 5.2kg
• Package Weight: 9.8kg

Warranty: 3 years
